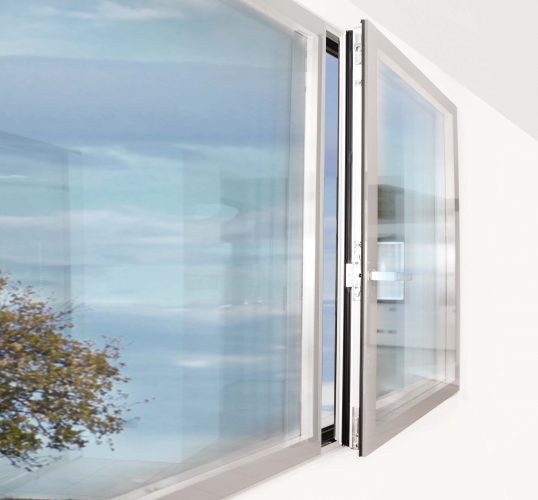

Zero 1 Casement Window
Glass to edge frame technology

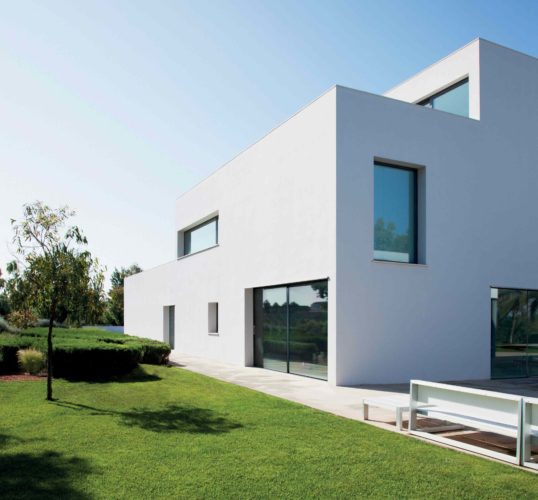

The Zero 1 window is ES Finestra’s glass-to-edge glazing model, the internal components concealed within a 66mm border profile applied directly onto the inner face of the glass. The advanced technological performance of this window and passive house complaint U-values make it the ideal solution for contemporary fenestration systems.
Systems

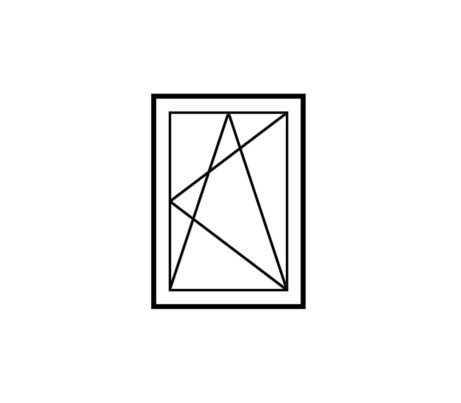

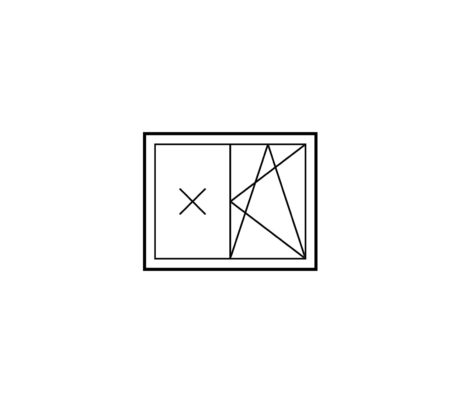

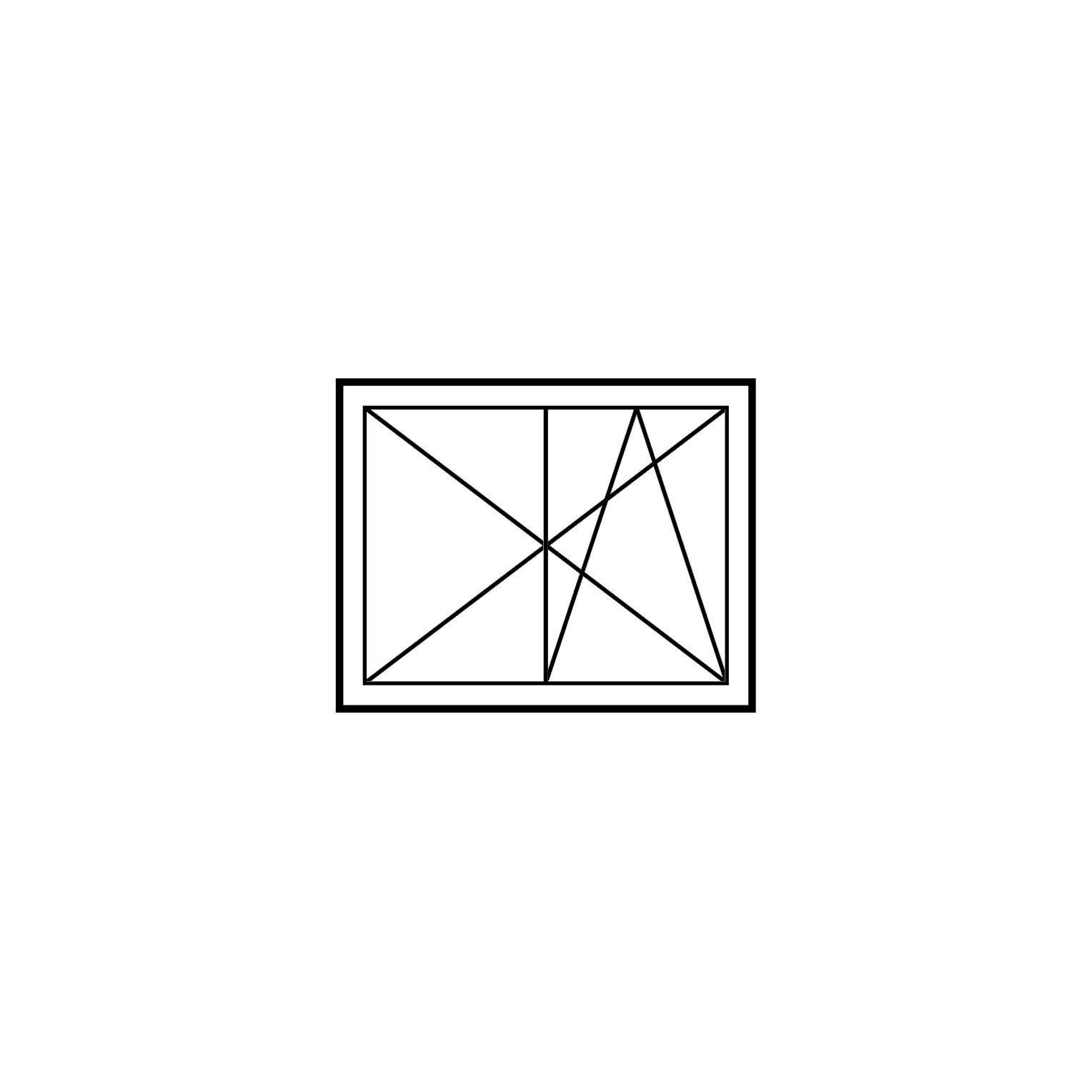

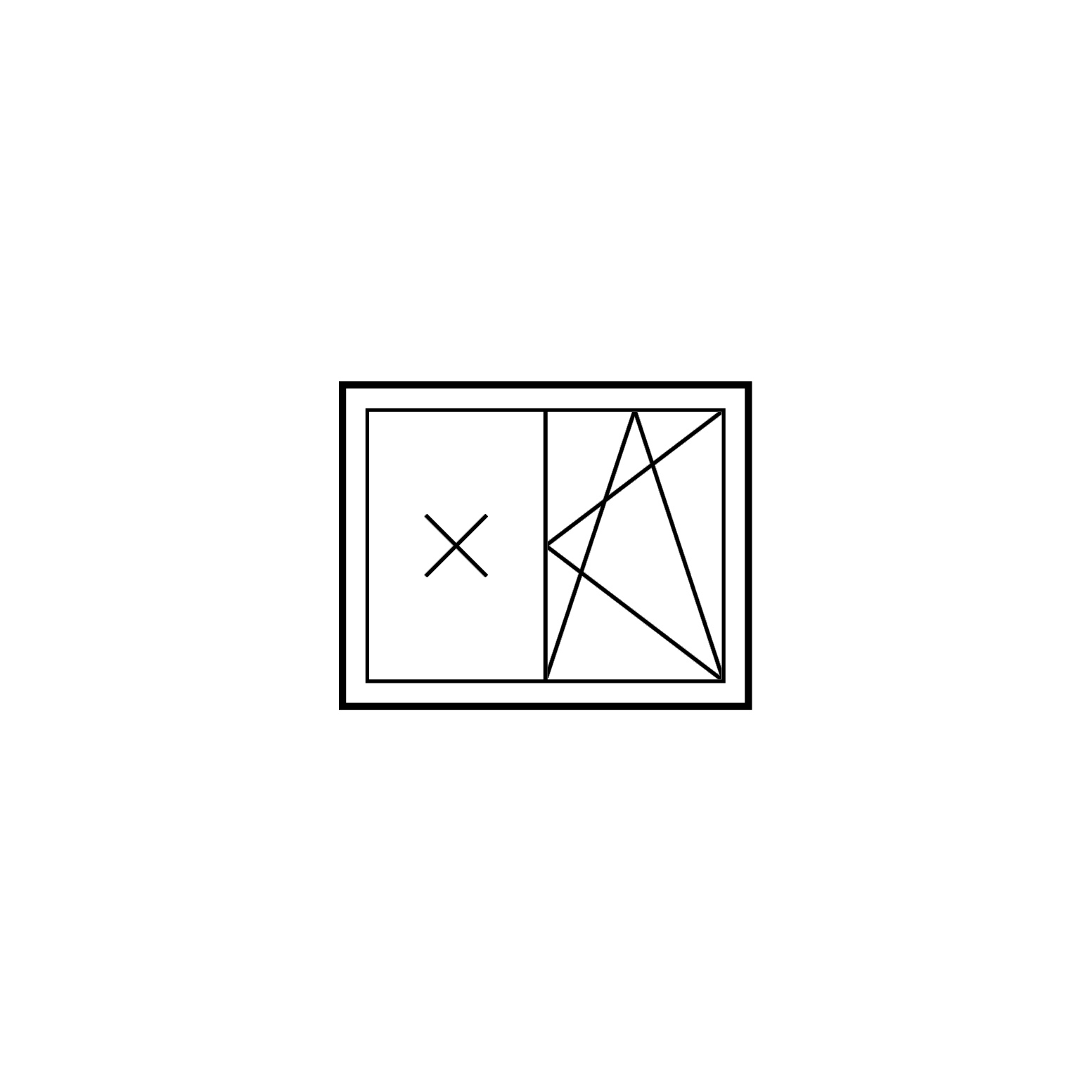

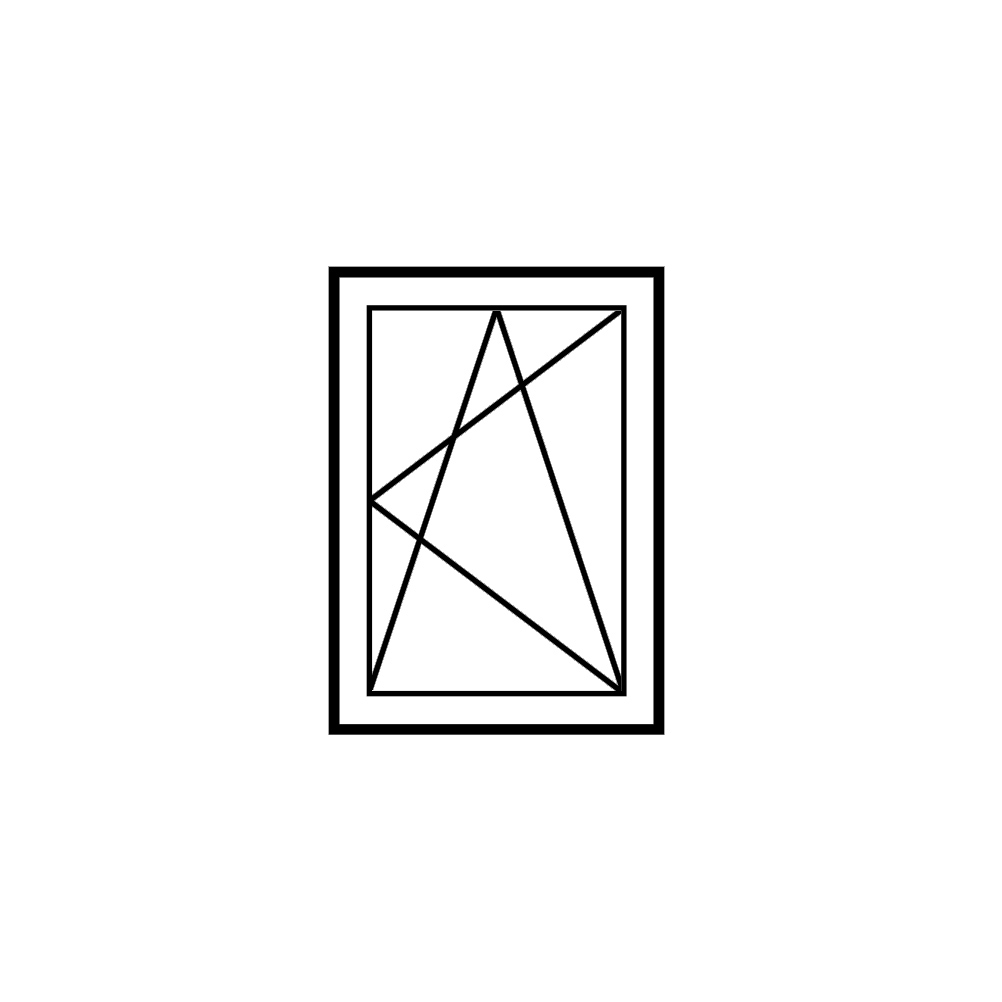

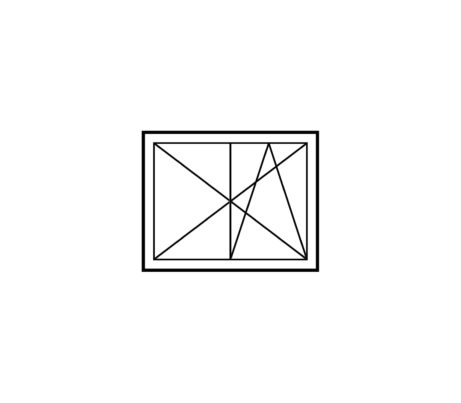

ES Finestra's Zero 1 casement glazing system canbe specified in a number of models that are designed to work interchangeably with other ES Finestra glazing systems.
Frame detail: 66 mm

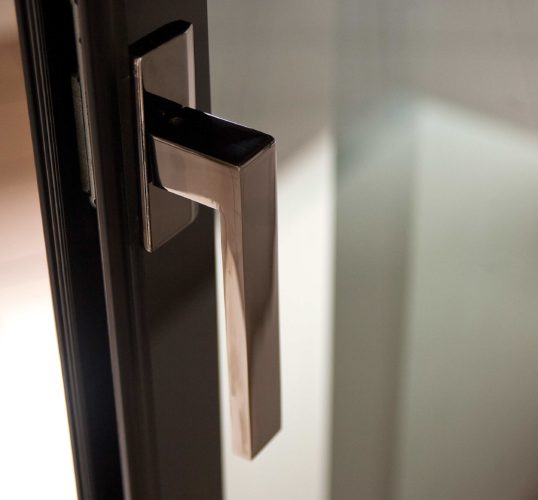

- Handle 90 ° from closed engages side hung opening.
- Handle 180 ° from closed engages tilt & turn.
Dimensions
- Max. Surface Area – 2.5 m2
- Min. Sash Dimensions – 0.5 x h 0.7 m
- Max. Weight – 140 kg
- Frame – 20 mm
Glazing
- Triple Glazing – 6T/32/5/27/6T
- E-coating available
Profile Details
- Standard Finished ES Finestra Casement Black
- Frame, Sash & Threshold Profile – Oxidated Black
- Serigraphy – Black
- Handle – PVD Black
- Standard Finished ES Finestra Casement White
- Frame Profile – Painted White RAL 9010
- Sash Profile – Silver Oxidated
- Serigraphy – White
- Handle – Satin-Finished Chrome
- Standard Finished ES Finestra Casement Grey
- Frame Profile – Painted Grey RAL 7042
- Sash Profile – Silver Oxidated
- Serigraphy – Grey
- Handle – Satin-Finished Chrome
| ES Zero 1 Window Brochures | Size | |
|---|---|---|
 | ES Zero 1 Brochure | 0.75mb |
 | ES Zero 1 Technical Manual | 2.84mb |
